Residual Current Breake Operator DPNL

AFDD RCBO DPNL DGB3LE-40AFD

DGB3LE-40AFD
DGB3LE-40AFD series of arc fault protection derivces are assembled by small circuit breaker, tripping mechanism, leakage and arc detection module.DGB3- 40AFD series of arc fault protection devices have the functions of short circuit protection, overload protection, leakage protection and arc fault protection. It detects the current of zero sequence current transformer through chip detection program, realizes the function of leakage protection, and detects arc fault through chip detection program, that is, it will disconnect power supply and play the role of arc fault protection. According to the China Fire Yearbook, the proportion of electric fire in the total fire is increasing year by year. However, 70% of the electric fire is caused by fault electricity, DGB3-40AFD series of arc fault protection devices can effectively avoid the fire caused by arc fault.
Quantity:
Contact Now
add to cart


Product name

DGB3LE-40AFD

Standards

AFDD as per IEC/EN-62606, RCBO as per IEC/EN-61009

Certificate

CE, CB

Electrical characteristics

Number of poles

1P+N

Rated frequency (Hz)

50/60

Frame current (A)Inm

40

Rated current (A)In

6,10,16,20,25,32,40

Rated voltage (V)

AC230V

Rated insulation voltage (V) Ui

500

Rated impulse withstand voltage (kV) Uimp

4

Rated short-circuit breaking capacity (kA)   Ics

6

Rated short-circuit breaking capacity (kA)   Icn

6

Instantaneous trip characteristics

B,C,D

Trip form

Thermal, magnetic and Lekage trip, arc detected trip

Pollution level

2

Rated residual action current (mA)

30

Max. breaking time at the rated residual current

0.1s

Residual current type

A

Overvoltage protection: Uvo=280V±5%

YES

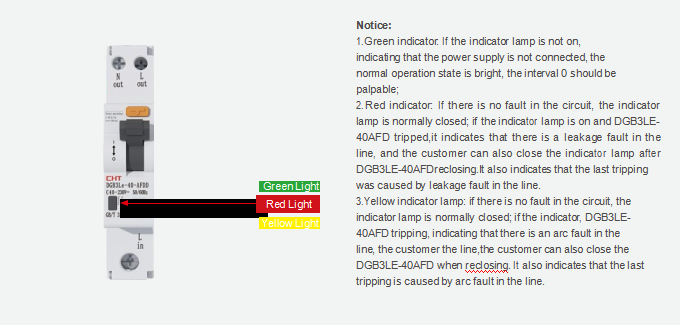

Electrical and mechanical accessories

/



DGB3LE-40AFD series of arc fault protection device include leakage protection,fault arc protection, overload protection and short circuit protection functions.DGB3LE-40AFD series of arc fault protection appliances leakage tripping characteristics as shown in Table 1 below:

Table 1

Model

In(A)

I△ n

Break time and non-drive time limited value

I△n

2I△n

5I△n

DGB3LE-40AFD

AnyValues

>0.03

0.3

0.15

Maximum breaking time

0.03

0.3

0.15

<0.03

0.3

0.15

0.04

The arc fault protection function of DGB3LE-40AFD series of arc fault protection devices mainly includes the arc fault protection detection unit, which detects and identifies the fault arc in the line and sends out the tripping signal. The DGB3LE-40AFD main contact is automatically converted from the closed position to the disconnected position, thus disconnecting the fault line.

Action judgement and breaking time maximum value of a 230V rated arc fault protection device is shown in Table2,Table 3.

Table 2 ,maximum value of ADDF action judgment under high arc current below 40A

Testarc current (Effectiv Value)

3A

6A

13A

20A

40A

Maximum segmen time

1S

0.5S

0.15S

0.25S

0.12S

Testarc current is the expected current before burning in test circuit.

Table 3,maximum value of ADDF action judgment under high arc current above 40A

Testarc current (Effectiv Value)

75A

100A

150A

200A

300A

500A

N

12

10

8

8

8

8

N is half wave number at rated frequency.
